Juice Filling Machine / Liquid Filling Machine

FOB Reference Price:Get Latest Price
$13,000.00 - $96,500.00 / Sets | 1 Set/Sets (Min. Order)
Power:
3KW
Model Number:
KM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
More service contact King Machine now ! (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years, 12months
Packaging Type:
Cans, Bottles
Packaging Material:
Glass, Plastic, Metal
Type:
Filling Machine
Condition:
New
Application:
Food, Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KM
Dimension(L*W*H):
2200X2100X2200MM
Weight:
2500kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Keywords:
Juice Filling machine
Material:
SS304
Certificate:
CE,ISO
after sales service:
can send engineer to customer's plant
PLC and touch screen:
Simense brand
water pressure:
0.25-0.3Mpa
Filling temperature:
87-92degree
Suitable bottle:
0.3-2L
Product name:
Juice Filling Machine / Liquid Filling Machine
Supply Ability
Supply Ability:
10 Set/Sets per Month Juice Filling Machine / Liquid Filling Machine
Packaging & Delivery
Packaging Details
Juice Filling Machine / Liquid Filling Machine
Standard Export Package.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

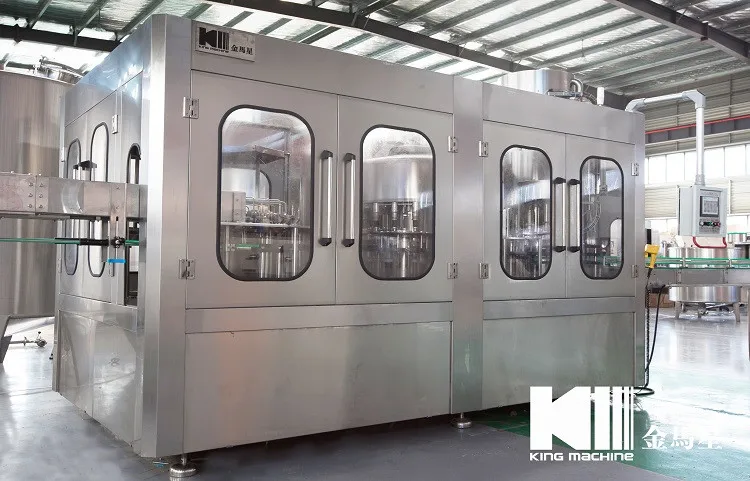

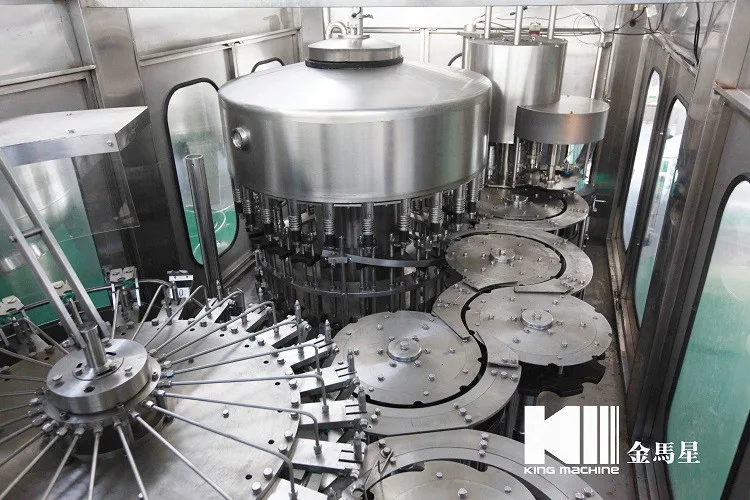

Liquid Beverage Filling Machine <Washing Filling Capping 3 in 1 type>
Model : King Machine CGF 24-24-8
Equipment Type
Automatic

Bottle Type
PET round or square bottle
Volume 200 - 2000ml
Bottle diameter 50-115mm
Bottle height 160-320mm
Output
up to 72,000 bph
Your product
mineral water/pure water/non-gas wine drink and so on.
Certificates
CE / SGS / ISO 9001
Filling Machine Benefits
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

Want to know more message , contact us with out hesitate ! Inquiry us now !
Whole Line Product

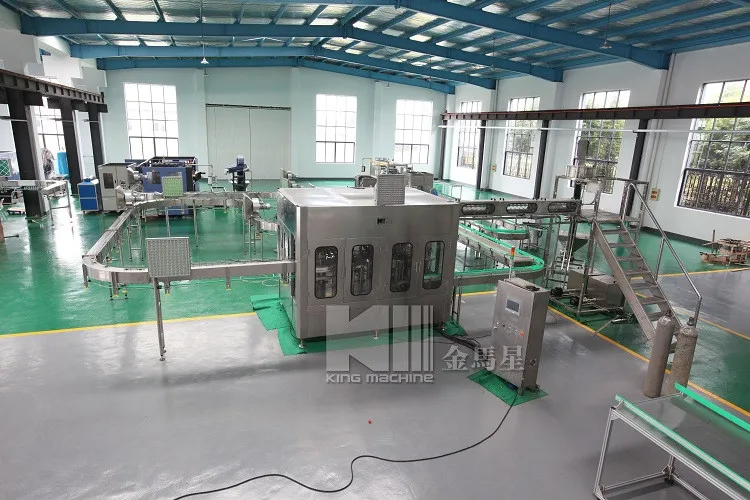

Beverage Filling Lines.
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.

With over 20 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have significantly reduced the weight of water bottles while retaining their durability and expanding design opportunities.
One partner for all your needs.
A complete water line solution from King Machine leverages our knowledge of the entire water bottling process, from minimising waste of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.
King Machine Water Treatment.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump


1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

Material Preparation System.

1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system

King Machine Blow Molding Machine.
1 / King Machine Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
King Machine Labeling Machine.
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.

Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
King Machine Packing Machine.
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.

Whether you choose shrink-printed film, nested packs or wraparound cartons, King Machine packers gently feed bottles to ensure durable and cost-effective packs.

BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Want to know more message , contact us with out hesitate ! Inquiry us now !
Best Service
What King Machine can do for you ?
Bottle Design
Whole Line Layout
Your Factory Workshop Building

Sample Project All Around the World

Want to know more message , contact us with out hesitate ! Inquiry us now !
About King Machine
Zhangjiagang King Machine Co.,Ltd
1 / Standardized workshop of total 20,000 square meters.
2 / The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
King Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
King Machine Cetificates and Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
Customer Feedback
FAQ
HOW TO FIND US?
● Search Alibaba, Made in China, Google, Youtube and find suppliers and manufactrue and not traders
● Visit exhibition in different countries
● Send King Machine an request and tell your basic inquiry
● King Machine sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to King Machine site
● The meaning of visiting supplier, because seeing is believing, King Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE KING MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF KING MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
