small middle scale business plan in water filling machine turkey project from manufactory

FOB Reference Price:Get Latest Price
$11,000.00 - $88,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
5.5 kw
Model Number:
CGF18-18-6
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Filling Machine, business plan in water filling machine
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50 Hz 3phase, Base on customer's factory
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KING MACHINE
Dimension(L*W*H):
3.1x2.1x2.4m
Weight:
5200kg
Certification:
CE,ISO,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Name:
water filling machine turkey project from manufactory
Output Choose:
3500bph; 5000bph; 8000bph; 10000bph; 12000bph; 15000bph
Filling Speed:
Adjustable
Bottle Volume:
Suitable For 100ml to 2000ml
Control System:
PLC Touch Screen(computer)
Electricity Brand:
Siemens, Mitsubishi
After-service:
life-long
Material:
Stainless Steel
Supply Ability
Supply Ability:
10 Set/Sets per Month small middle scale business plan in water filling machine turkey
Packaging & Delivery
Packaging Details
standard wooden package
small middle scale business plan in water filling machine turkey project from manufactory
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description

small middle scale business plan in water filling machine turkey project from manufactory

Product Description

Products Introduction

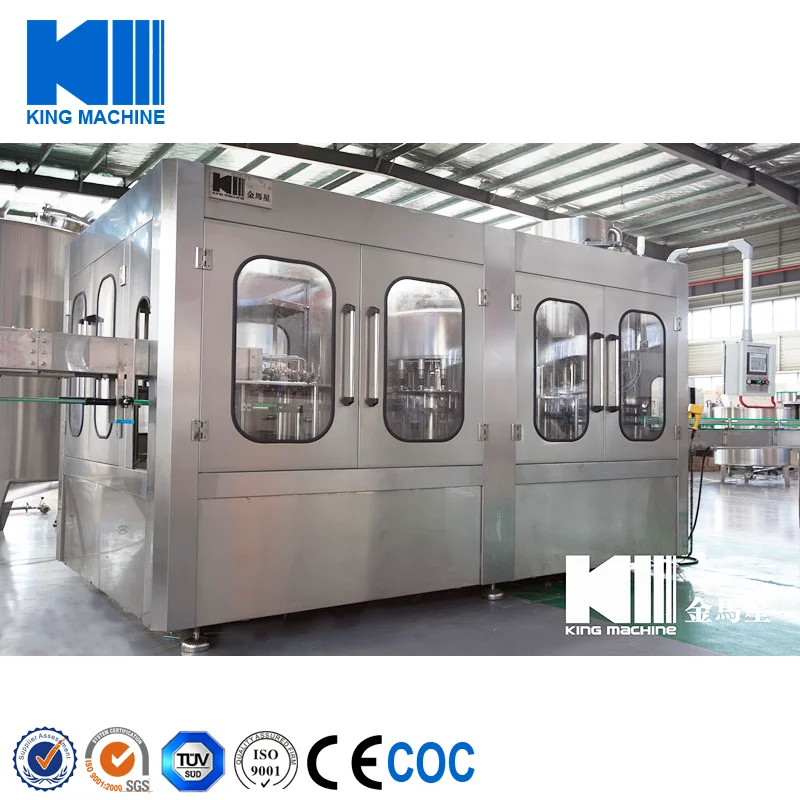

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

(1) Automatic Bottled Drinking Water Production Line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2)The Automatic Water Bottle Filling Machine used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

(3)The Full Automatic Mineral Water / Juice Bottle Filling Machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5)The advanced Siemens programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

(7)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage maker.

Characteristics
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.
Technical parameters

Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Weight

(kg)

Machine Size

(m)

CFG14-12-4

14

12

4

3000-4000

3000kg

2.5x1.85x2.4m

CFG16-16-5

16

16

5

4000-5000

3500kg

2.7x1.9x2.4m

CFG18-18-6

18

18

6

5000-7000

4200kg

2.8x2.0x2.4m

CFG24-24-8

24

24

8

8000-12000

5200kg

3.1x2.1x2.4m

CFG32-32-10

32

32

10

12000-15000

7000kg

3.6x2.2x2.4m

CFG40-40-10

40

40

10

15000-20000

8200kg

4.2x2.3x2.4m

CFG50-50-12

50

50

12

20000-24000

9600kg

4.8x2.3x2.4m


Comparisons of the Washing Filling Capping 3 in 1 Monoblock Machine

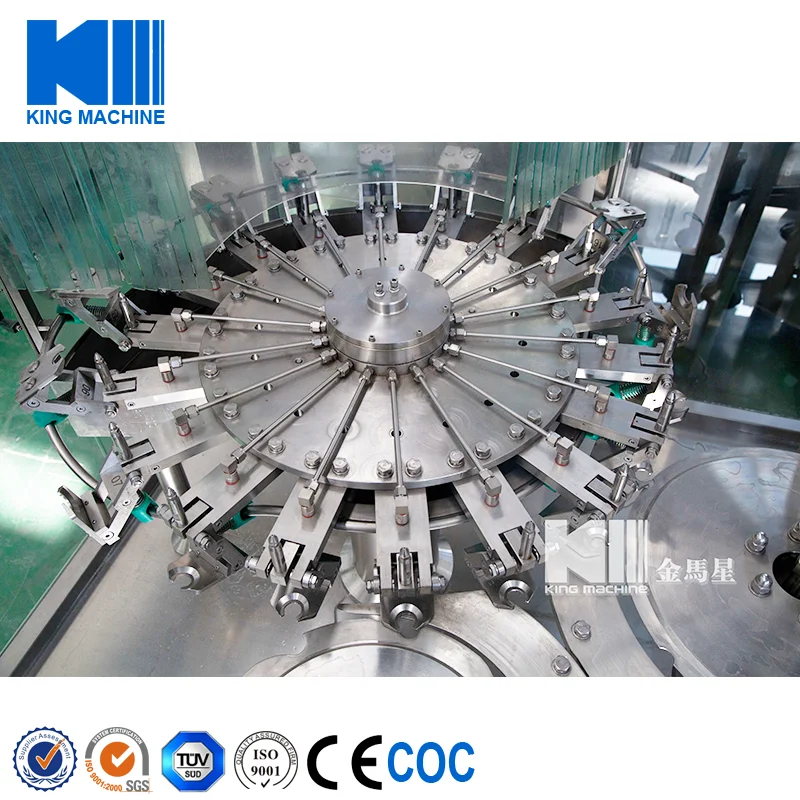

Washing part:
Our washing clamp is much bigger and stronger than other suppliers.

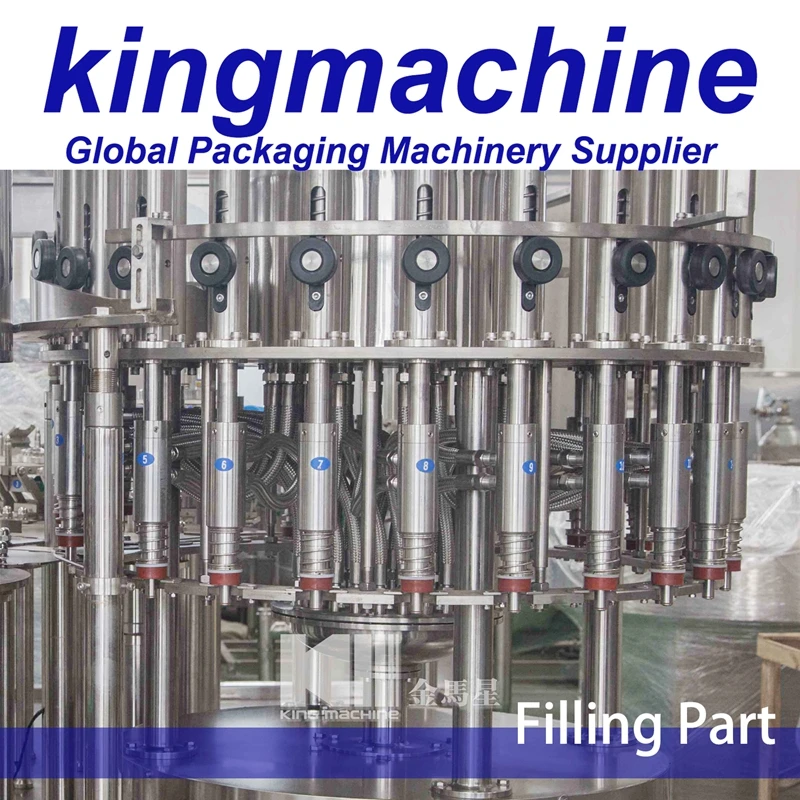

Filling part:
We use micro- pressing filling valve, which is faster and can be also used for jucie filling

Capping part:
Capping heads is also much bigger and stronger.


Siemens PLC control



Certifications
Packaging & Shipping



Our Services

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.



The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.



Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.



After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.



Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.

 If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.

Company Information

Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection   moulding machine and spare parts of filling line.

Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.



O

Our Factory

Our production workshop

Our workers are working



FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !



Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.



Q4: How can I install my machine when it arrives?

A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.



Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
