5gallon water filling machine / water bottele 5 gallone / bottle water

FOB Reference Price:Get Latest Price
$9,800.00 - $83,600.00 / Sets | 1 Set/Sets (Min. Order)
Power:
7.5KW
Model Number:
ZSJ
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Barrel, Bottles, Cans
Packaging Material:
Glass, Paper, Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Food, 3gallon~5gallon or 20L
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
king machine
Dimension(L*W*H):
3000x2000x1800mm
Weight:
3000kg
Certification:
CE,ISO,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Name:
5gallon water filling line
Productivity:
100~1200 barrels/hour
Control:
PLC (MITSUBISHI)
Suitable:
Drinking water
Processing:
Washing ,filling,capping
Bottle size:
1- 5gallon or 1L~20L
Supply Ability
Supply Ability:
30 Set/Sets per Month bottle water
Packaging & Delivery
Packaging Details
wooden cases
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Product Application.

1/Auto Bottle Uploader
2/ Decapping Machine
3/ Outside Brusher
4/ Inside Brusher
5/Rinsing Filling Capping Machine <with Cap Elevator and Sterilization System>
6/ Light Inspector+Cap Seal Shrink Machine
7/ Finished Products

Containers and Specifications
Project Name:
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material
Shape
Filling volume
Filling Type
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Adjustable Specifications
of
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Main Features.

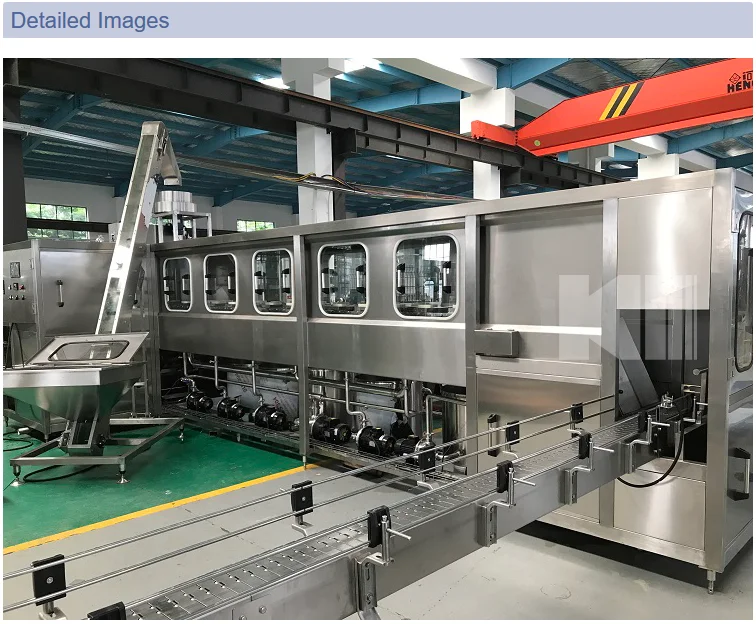

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Outside Wshing Machine.

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

Main Machine Features.

1/Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.

2/The thickness of the stainless steel plate which used for 600bph is 3mm.

3/Tank and the heating pipe in tank are removable which become more clean sanitation.

Filling Part Features.

1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

Capping Parts.

1/Liquid level difference is controlled in 1cm.

2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

Flat Conveyor.

The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.

Cap Sterilization System.

Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
