Hot Selling Tomato Sauce Filling And Making Machine With ISO And CE

FOB Reference Price:Get Latest Price
$20,000.00 - $50,000.00 / Sets | 1 Set/Sets Hot Selling Automatic Hot Sauce Filling Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Barrel, Bottles, Cartons
Packaging Material:
Glass, Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Food, Soda water / drinks
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380v
Power:
5.2kw
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
kingmachine
Model Number:
SCGF
Dimension(L*W*H):
2980*2200*2250mm
Weight:
4500kg
Certification:
CE,ISO,SGS
Production Name:
Hot Selling Tomato Sauce Filling And Making Machine
Producing capacity:
2000-30000BPH
Filling precision:
≤±5mm
Filling temperature:
3~5degree
Bottle type:
PET / glass bottle
Bottle size:
250ml~2L
control:
PLC (SIMENS)
Processing:
Washing , Filling ,capping
Keyword:
tomato sauce filling machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month Hot Selling Tomato Sauce Filling And Making Machine
Packaging & Delivery
Packaging Details
Standard Export Wooden Cases
Hot Selling Tomato Sauce Filling And Making Machine
Port
shanghai
Lead Time :
30Days
King Machine Factory
Product Description

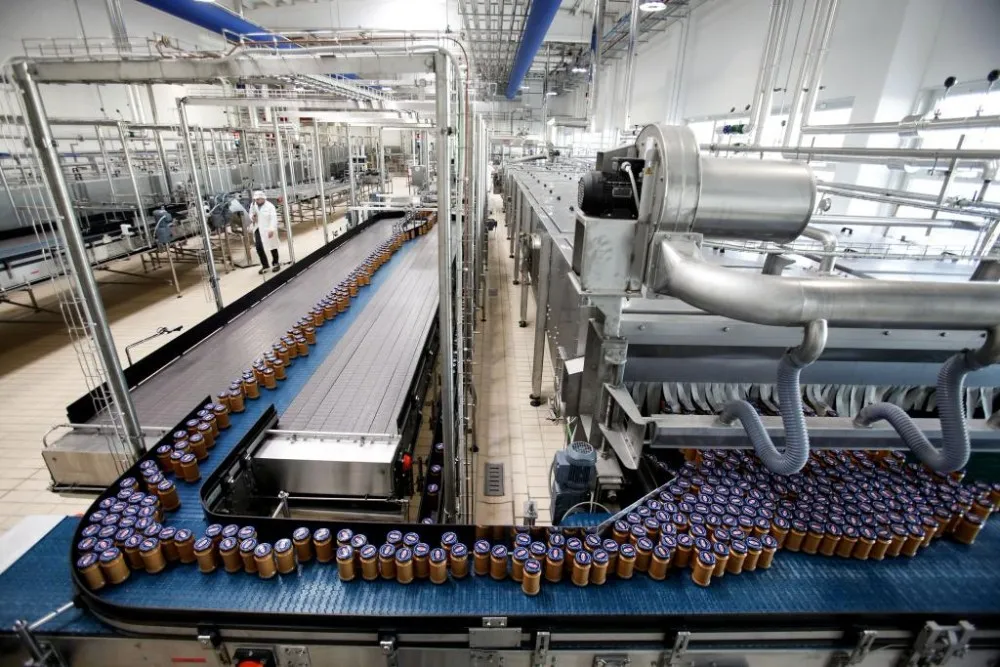

Bottle Sauce Whole Production Line.

FLOW CHAT - Plastic Bottle.

1/Water Treatment
2/Sauce processing system
3/Bottle Blowing Machine / Bottle Unscrambler
4/Air Conveyor + Flat Conveyor

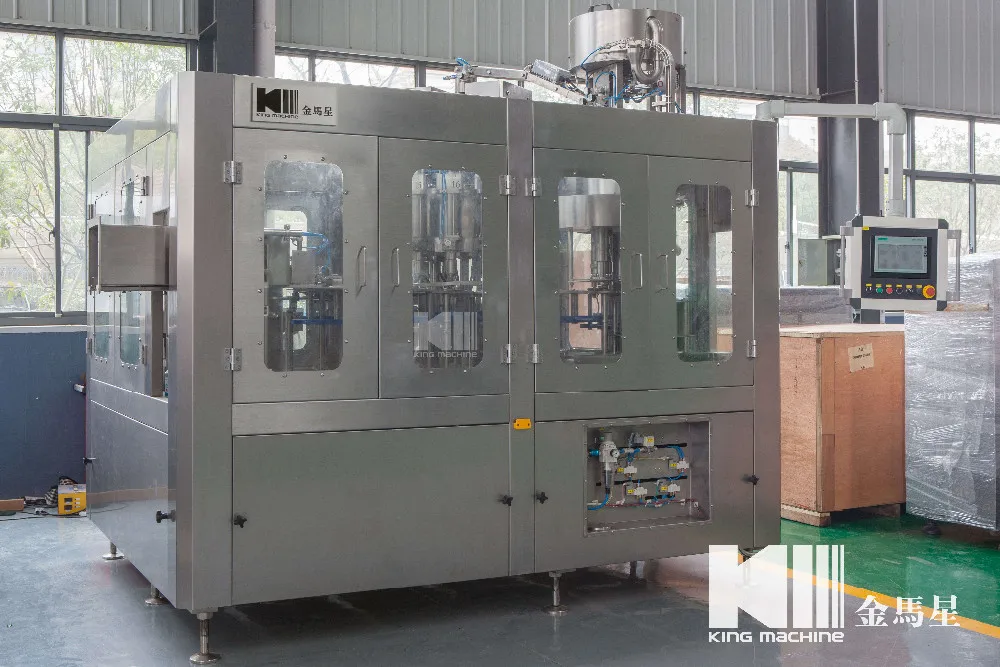

5/Rotary Type 3 in 1 Filling Machine
6/Light Checking
7/Cooler & Shower
8/Labeling Machine
9/Date Code Printer
10/Bottle Packaging Machine

FLOW CHAT - Glass Bottle.

1/Water Treatment
2/Sauce processing system
3/Bottle Unscrambler
4/Flat Conveyor
5/Rotary Type 3 in 1 Filling Machine
6/Light Checking
7/Cooler & Shower
8/Labeling Machine
9/Date Code Printer
10/Bottle Packaging Machine

Containers and specifications
Project Name: PET Bottled Sauce Filling Machine
Sauce Jam
Material
Shape
Filling volume
Filling level(mm)
Neck type
PET or Glass
Bottle
Square or Round Bottle
100-2000ml
Distance from bottle neck
According request
As request
Adjustable specifications of the bottle type
【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label & Control Mode
Packaging system
Palletizing system

Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic
Packing system
Min, Spec.
Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer
Manual
Film shrinker
Wrap Around packer
Robert Packing Machine
1*2
2*3
3*4
4*6
3*5
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Washing heads.

<1>Into bottle way is air conveyor direct connection with Bottle dial .
<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<3>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<4> 304/316 stainless steel washing pump make the machine more durable .

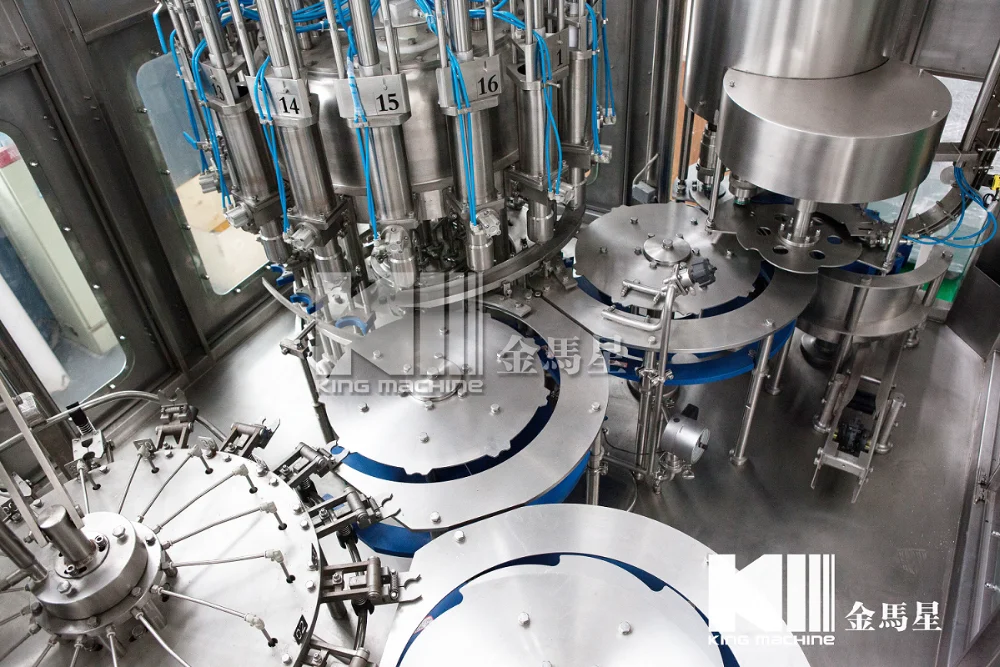

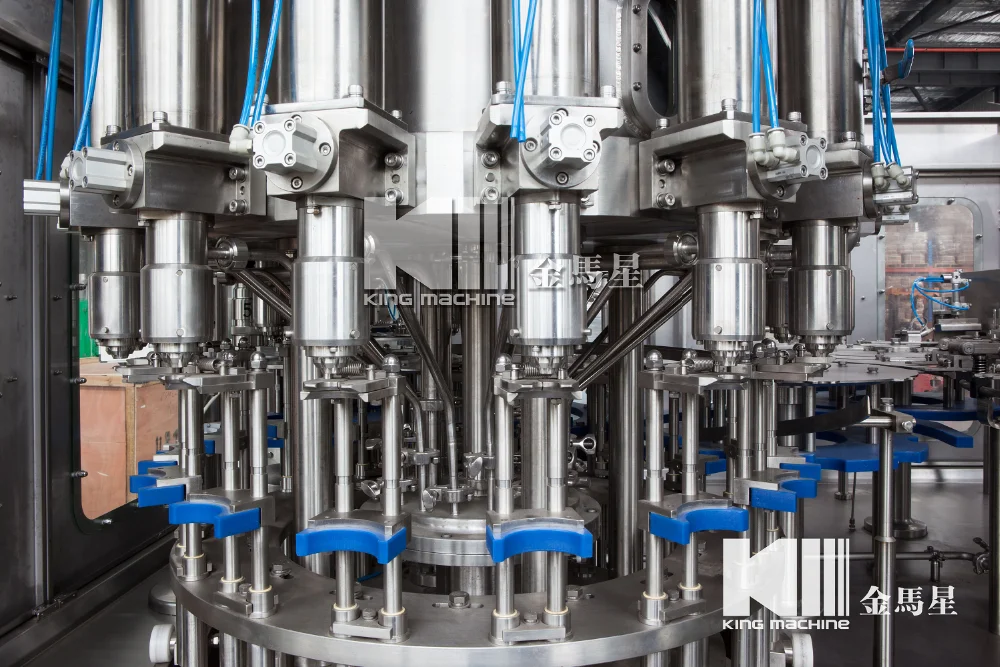

Filling heads.

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

Capping heads.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .

Air Conveyor.

Air conveyor is fixed on the floor, with fan installed on the top.
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS 304 /316.
Rack made by high quality carbon steel welded .

Flat conveyor.

1/Energy saving. High efficient. Adapt to customer factory layout
2/Special lubrication system, keep products clean, health, safety
3/Extended service life
4/Electric eyes design keep whole line running safety and quickly
5/Overload protection mechanism to effectively ensure the safety of the machine

Water treatment system.

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump


1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

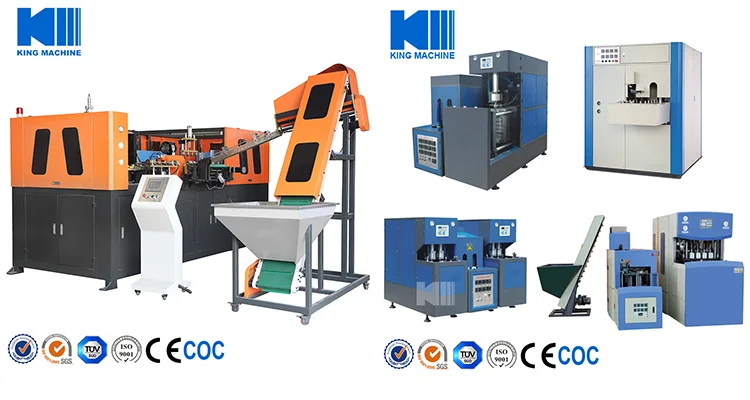

Bottle supply system.

1/Semi-auto Blowing System
2/Full-auto Blowing System
3/Bottle Unscrambler
Picture for full automatic blow molding machine , is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

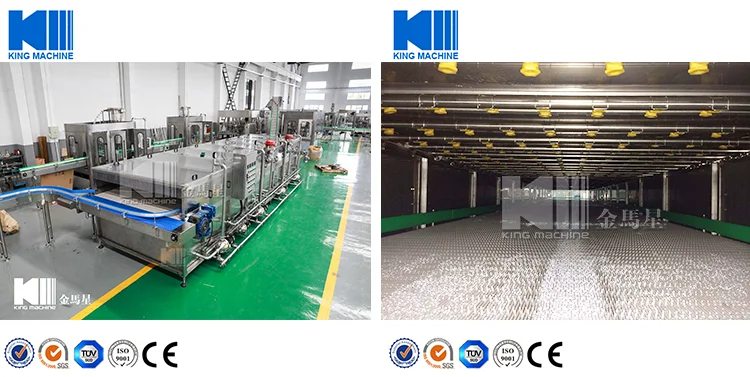

Cooler & Shower.
1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small wear
5/Smooth and reliable operation with low energy consumption
Automatic labeling machine.

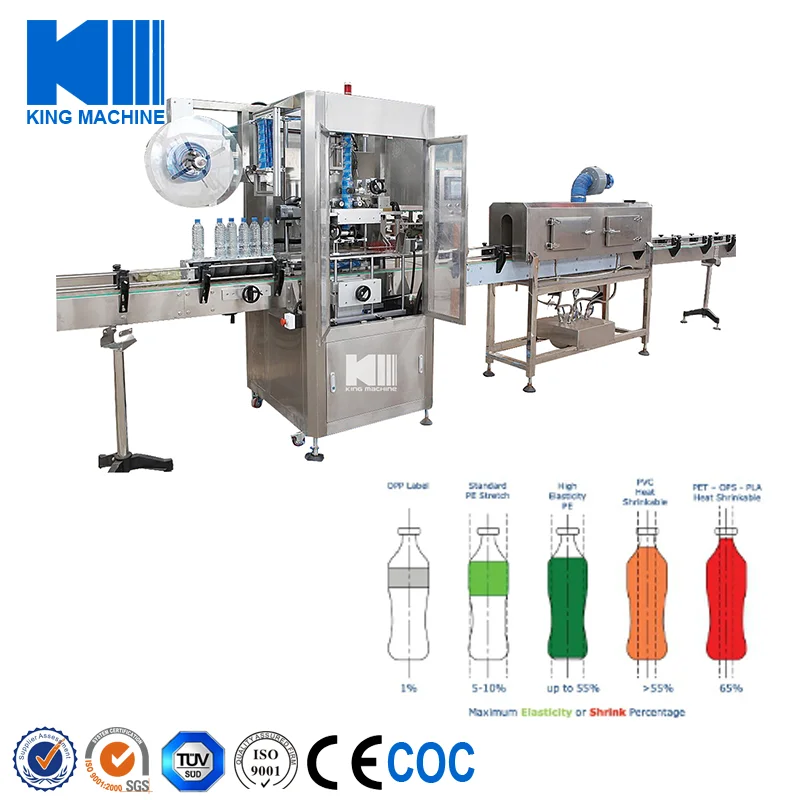

1/Heat shrink sleeve labeling machine
2/OPP Hot melt labeling machine

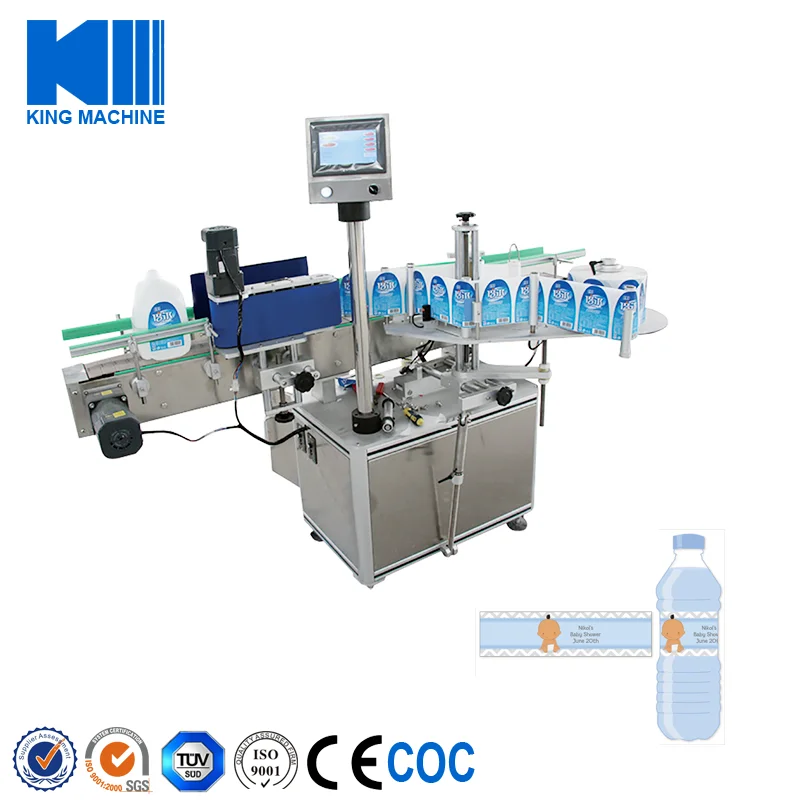

3/PVC/Paper label stick labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Bottle packaging machine.
1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Certificate & Patent
About King Machine

<1> Standardized workshop of total 12,000 square meters.

<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.


<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.

<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.

<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport :
By sea. By train. By aircraft.
