200ml-2L Complete Bottled Water PE Film Package Production Line

FOB Reference Price:Get Latest Price
$13,000.00 - $300,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KM-CGF 8-8-3 KM-CGF 14-12-4 KM-CGF 16-16-5 KM-CGF 18-18-6 KM-CGF 24-24-8 KM-CGF 32-32-10 KM-CGF 40-40-12 KM-CGF 50-50-12 KM-CGF 60-60-15
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Factory Layout Drawing (Min. Order: 1 Sets)
Factory Building (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
Application:
Food, Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
According to Customer
Power:
10KW
Place of Origin:
Jiangsu, China
Brand Name:
King Machine
Dimension(L*W*H):
2500*1900*2300
Weight:
5000kg
Certification:
CE ISO SGS
Product name:
200ml-2L Complete Bottled Water Production Line
Filling Material:
Bottled Spring Water/Pure Water/Mineral Water
Main Machine 1:
Blow Bolding Machine
Main Machine 2:
Water Treatment System
Main Machine 3:
3 in 1 Filling Machine
Main Machine 4:
Labeling Machine
Main Machine 5:
Date Printer
Main Machine 6:
Packaging Machine
King Machine History:
15 Year Manufacturer
Supply:
Beverage Ideal Solution
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Year
Packaging & Delivery
Packaging Details
PE film inside, wooden case packaging.
Port
Shanghai Yangshan
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
King Machine Factory
Solution Preview
Containers & Specifications
Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line
PH≥4.6
drinking water
Material
Shape
Filling volume
Filling level(mm)
Neck type
PET Bottle
Square or Round
Bottle
100-2000ml
Distance from bottle neck
According request
As request
Adjustable specifications of the bottle type
[Middle Mould Base]Bottle diameter ≤105mm Bottle Height≤335mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label & Control Mode
Packaging system
Palletizing system

Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic
Packing system
Min, Spec.
Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer
Manual
Film shrinker
Wrap Around
packer
Robert Packing
Machine
1*2
2*3
3*4
4*6
3*5
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

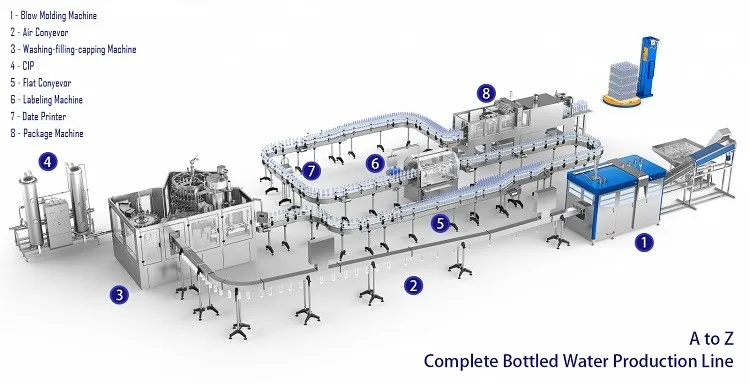

KEY FEATURES OF WATER LINE.

1 - It can apply to fill natural spring water, purified water, carbonated water,flavored water into PET bottle by changing few spare parts.

2 - Its usual production capacity is in 1,000-36,000bph, 0.25-2.5L PET bottle is available.

3 - Automatic Water Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304/ SUS316.

4 - Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS.

5 - Filling accuracy is more or less than 1%.

6 - We can provide complete beverage ideal solution - blowing. filling. packing for PET bottle.

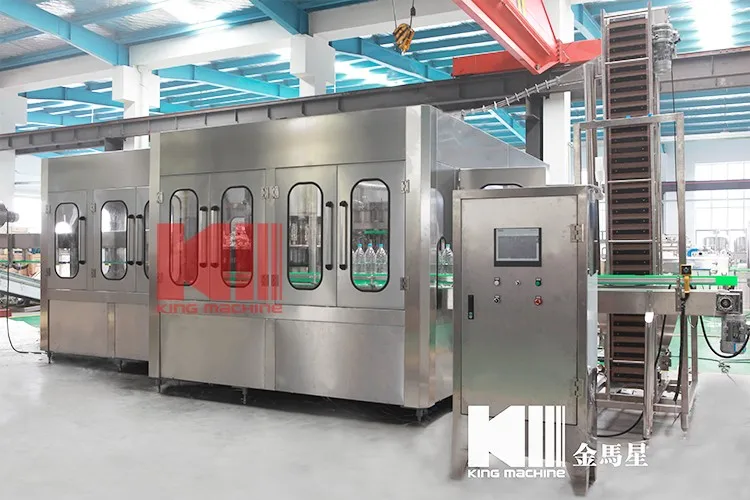

A - Filling System

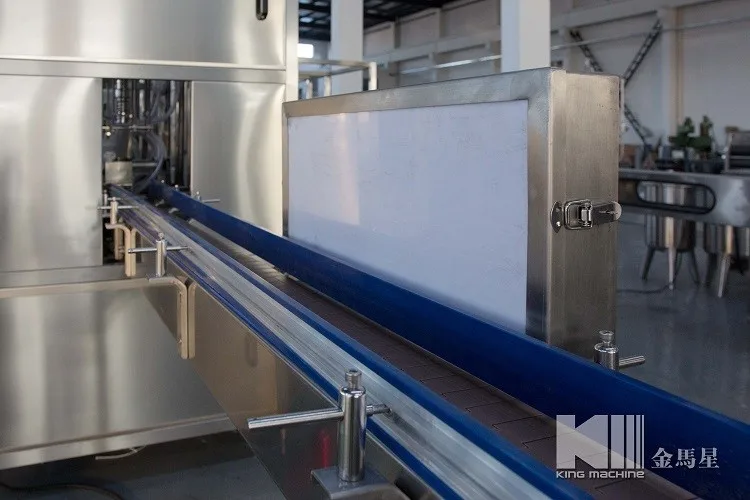

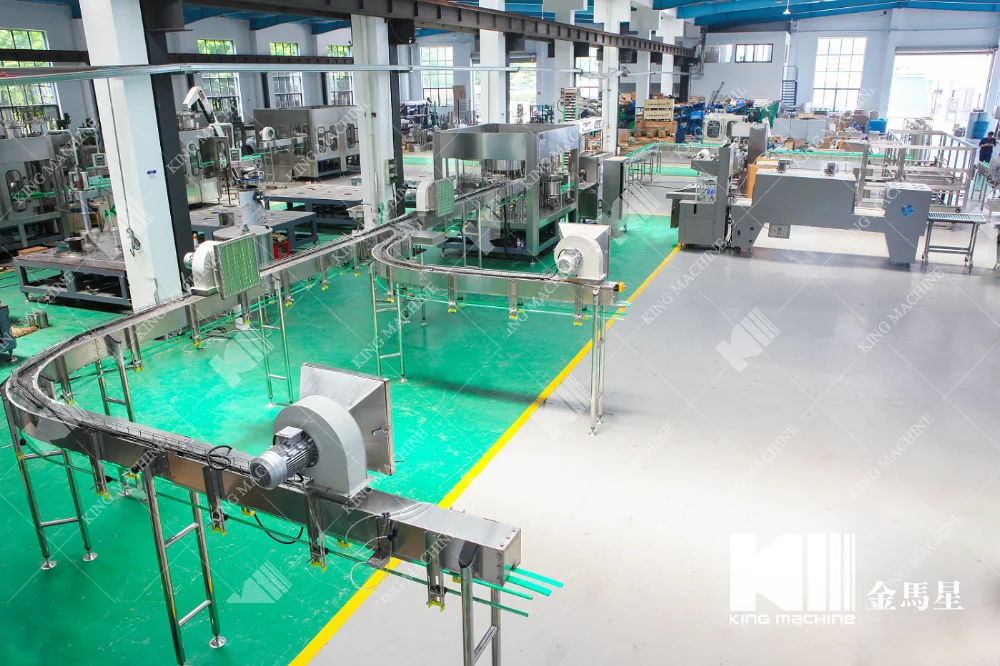

1 - Air Conveyor.

- Air conveyor is fixed on the floor, with fan installed on the top.

- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.

- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.

- All are made of stainless steel SUS 304 /316.

- Rack made by high quality carbon steel welded.

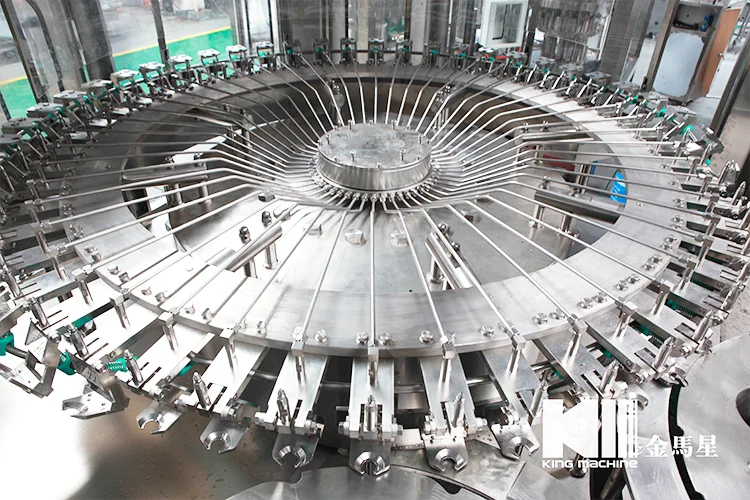

2 - Washing Parts.

- Into bottle way is air conveyor direct connection with Bottle dial.

- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

- 304/316 stainless steel washing pump make the machine more durable.

3 - Filling Parts.

- 304/316 Stainless steel high precision filling nozzle.

- Filling volume adjustable in fine rank, same liquid level after filling.

- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.

- 304/316 stainless steel filling pump.

- Efficient spray nozzle rinse thoroughly and save water for flushing.

4 - Capping Parts.

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.

- All 304/316 stainless steel construction.

- No bottle no capping.

- Automatic stop when lack of bottle.

- Capping effect is stable and reliable, Defective rate ≤0.2%.

5 - Flat Conveyor.

- Energy saving. High efficient. Adapt to customer factory layout.

- Special lubrication system, keep products clean, health, safety.

- Extended service life.

- Electric eyes design keep whole line running safety and quickly.

- Overload protection mechanism to effectively ensure the safety of the machine.

B - Water Treatment

Choose your suitable water treatment.


1 / Pure water - RO Reverse osmosis treatment

2 / Mineral water - Hollow filter water treatment

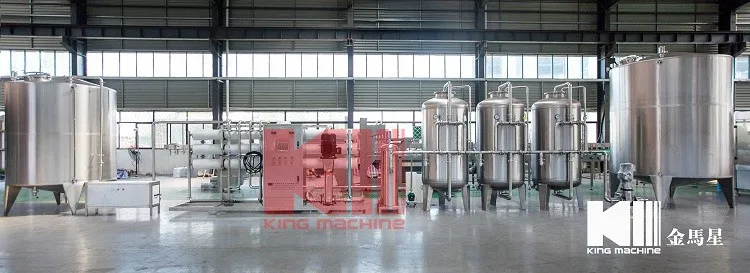

Pure Water - RO Water Treatment System.

1 - Raw water tank + Raw water pump
2 - Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 - Reverse Osmosis (one level)
4 - UV sterilizer
5 - Finished water tank + Pure water pump


1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

C - Blowing Machine

King Machine Bottle Making Machine.

1 / Full automatic bottle blow molding machine
2 / Semi automatic bottle blwoing machine<0.1-5L><5-25L>
3 / Semi automatic hot filling bottle blow molding machine

Suitable Bottle Volume.

1 - Plastic Bottle 0.1 - 3L
2 - Hot Filling Bottle 0.3 - 2.5L
3 - Gallon 2.5 - 5 Gallon
4 - Oil Bottle 0.1 - 6L
5 - PP Bottle 0.3 - 2.5L

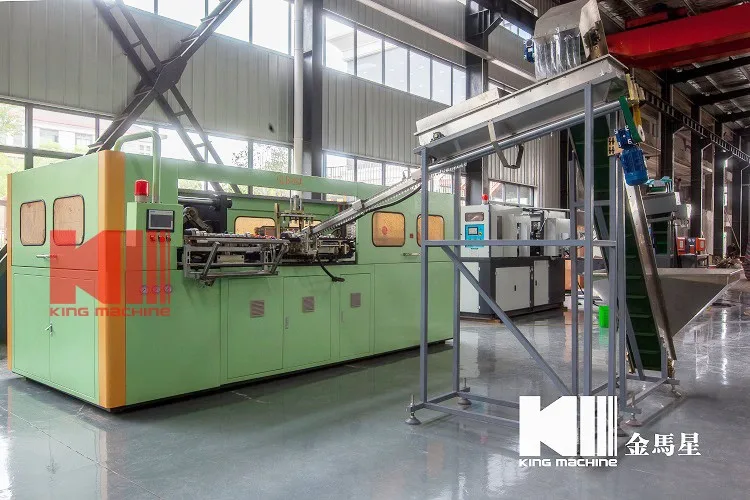

Full automatic bottle blow molding machine.

Main features.
1 - Stable performance with advanced PLC.
2 - Conveying preforms automatically with conveyor.
3 - No contamination and low noise with the air cylinder to drive the action not the oil pump.
4 - Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
5 - Strong clamping force with high pressure and double crank links to lock the mold.

Flow chart.

High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer -- Low Pressure Air Compressor -- Air Fiter -- Full Automatic Blow Moulding Machine -- Mould -- Water Chiller

D - Labeling Machine

Choose your suitable labeling type.

1/Heat shrink sleeve labeling machine < Single head > < Double head >

2/OPP Hot melt labeling machine

3/PVC label stick labeling machine < Single side > < Double side > < Three side >

Choose your suitable label type.

1/PVC/PET shrink film label.
Widely used in food, beverages, mineral water and daily products.

Material: PVC heat shrinkable film, PET heat shrinkable film.
PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;
PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;
Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors

2/Sticker label.
Material: Coated paper, Synthetic paper, BOPP.
Color: Up to 9 colors.

3/OPP label.
Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%.

Trends - OPP Hot Glue Labeling Machine.

1/Body is built with stainless steel, aluminum alloy and square steel tubes.
2/welded tubes ensure stable and smooth operations at high speed performance.
3/Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.
4/Round plate type suction label.
5/Automatically detect and adjust the production speed
6/Emergency Stop Safety Device disables the machine when senses an abnormality.
7/Automatic tension control.
8/Automated label proofreading and Cutting System.
9/Automatic warning system and alarm will be activated when it is out of label.

E - Package Machine

Choose your Packaging Type.

1 - PE film.
1/L-type Automatic Shrink Wrapping Packing Machine.
2/Semi-automatic Shrink Wrapping Machine.
3/Linear type PE Film Shrink Wrapping Machine.

2 - Half-tray with PE film.
1/Linear Type Automatic Half-tray PE Film Shrink Wrapping Machine.

3 - Carton box.
1/Cardboard Type Carton Packing Machine.
2/Carton Forming Packing Sealing Machine.

In picture is PE film packaging machine.

King Service

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
