King Machine Automatic CIP System for Beverage Packaging Line

FOB Reference Price:Get Latest Price
$2,000.00 - $96,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
More service contact us now ! (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Processing:
Washer
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
King Machine
Voltage:
220V 380V 50HZ
Power(W):
2.2kw-18kw
Weight:
200KG-2000KG
Dimension(L*W*H):
800*800*1200mm
Processing Types:
Beverage
Certification:
CE ISO9001 SGS
Warranty:
1 Year
Keywords:
CIP System
Application:
Liquid / Acohol /Beverage Juice
Material:
Food Grade Stainless Steel 304/316/316L
Control:
PLC+touch Screen Control
Usage:
Place CIP
Function:
CIP Cleaning Equipment Widely Used
Capacity:
1000-10000L
Automatic Grade:
Automatic / Semi-auto
Cleaning type:
Acid-base liquid rinse
Product name:
King Machine Automatic CIP System for Beverage Packaging Line
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month King Machine Automatic CIP System for Beverage Packaging Line
Packaging & Delivery
Packaging Details
King Machine Automatic CIP System for Beverage Packaging Line
Wooden cases to protect the goods in the long distance shipping.
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

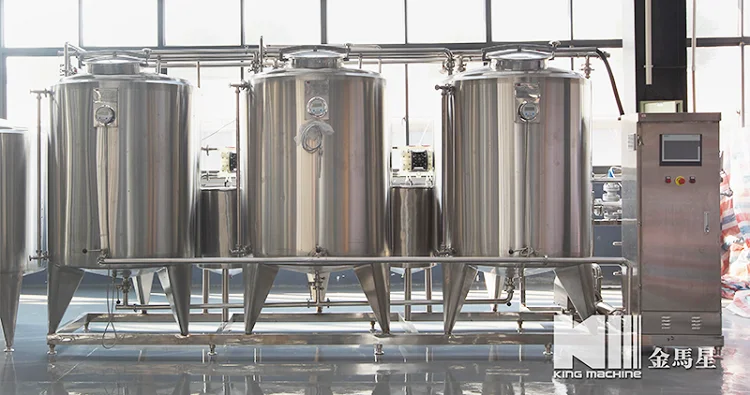

King Machine Automatic CIP System

Model : Split type & Integral type

Equipment overview

This CIP cleaning station is automatically controlled. All cleaning process parameters (cleaning time, acid-base concentration, cleaning solution temperature, cleaning method) can be set on the operating touch screen. When cleaning is required, specify the required cleaning device on the touch screen, select the cleaning method (three-step cleaning or five-step cleaning), and start the system, then the CIP device automatically completes the cleaning process according to the preset program. Automatic recovery by acid, alkali and water.

Treatment water consumption (m3/hr)
/
Treatment water temperature (°C)
Normal temperature
Treatment water inlet pressure (Mpa)
0.2-0.25
Handling water inlet caliber
/
Compressed air inlet pressure (Mpa)
0.6-0.8
Compressed air consumption (Nm3/min)
/
Compressed air inlet caliber
DN15
Steam inlet pressure (Mpa)
0.6-0.8
Steam consumption (Kg/hr)
/
Steam inlet caliber
/
Installed power Kw (380V 50HZ)
/
Machine Features
1 / Temperature self-control, control the opening size of the steam flow regulating valve by the outlet temperature probe detection value to ensure that the cleaning temperature is within the allowable range (control accuracy ± 2 ° C).
2 / The cleaning fluid supply and the self-circulation switching automatic control are realized by the two-position three-way valve of the cleaning liquid outlet.
3 / With a flow meter, the flow rate can be observed by observing the flowmeter value.
4 / Add chemicals with a pneumatic diaphragm pump
5 / The sampling valve and the manual valve that needs to be operated frequently are installed on the operation surface for the operator to operate.
6 / A sampling valve is provided on each tank and return line to facilitate manual detection of the concentration of the cleaning solution.
7 / All cleaning process parameters can be set on the touch screen on the electric control cabinet. The system automatically cleans according to the setup program. Several different cleaning programs have been set up inside the machine and can be selected according to the actual situation.
8 / All pneumatic valves have a manual opening function.
Whole Line Product

Material Preparation System.

1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system

King Machine Water Treatment.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump


1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame
Want to know more message , contact us with out hesitate ! Inquiry us now !
Best Service
What King Machine can do for you ?
Bottle Design
Whole Line Layout
Your Factory Workshop Building

Sample Project All Around the World

Want to know more message , contact us with out hesitate ! Inquiry us now !
About King Machine
Zhangjiagang King Machine Co.,Ltd
1 / Standardized workshop of total 20,000 square meters.
2 / The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
King Machine Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
King Machine Cetificates and Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
Customer Feedback
FAQ
HOW TO FIND US?
● Search Alibaba, Made in China, Google, Youtube and find suppliers and manufactrue and not traders
● Visit exhibition in different countries
● Send King Machine an request and tell your basic inquiry
● King Machine sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to King Machine site
● The meaning of visiting supplier, because seeing is believing, King Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE KING MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF KING MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
