Automatic PET Film Bottle Heat Shrink Packaging Machine / Machinery / Equipment
1.Material:PE film 2.Application:Water bottle 3.Packing speed:8-16bags/min 4.CE,ISO

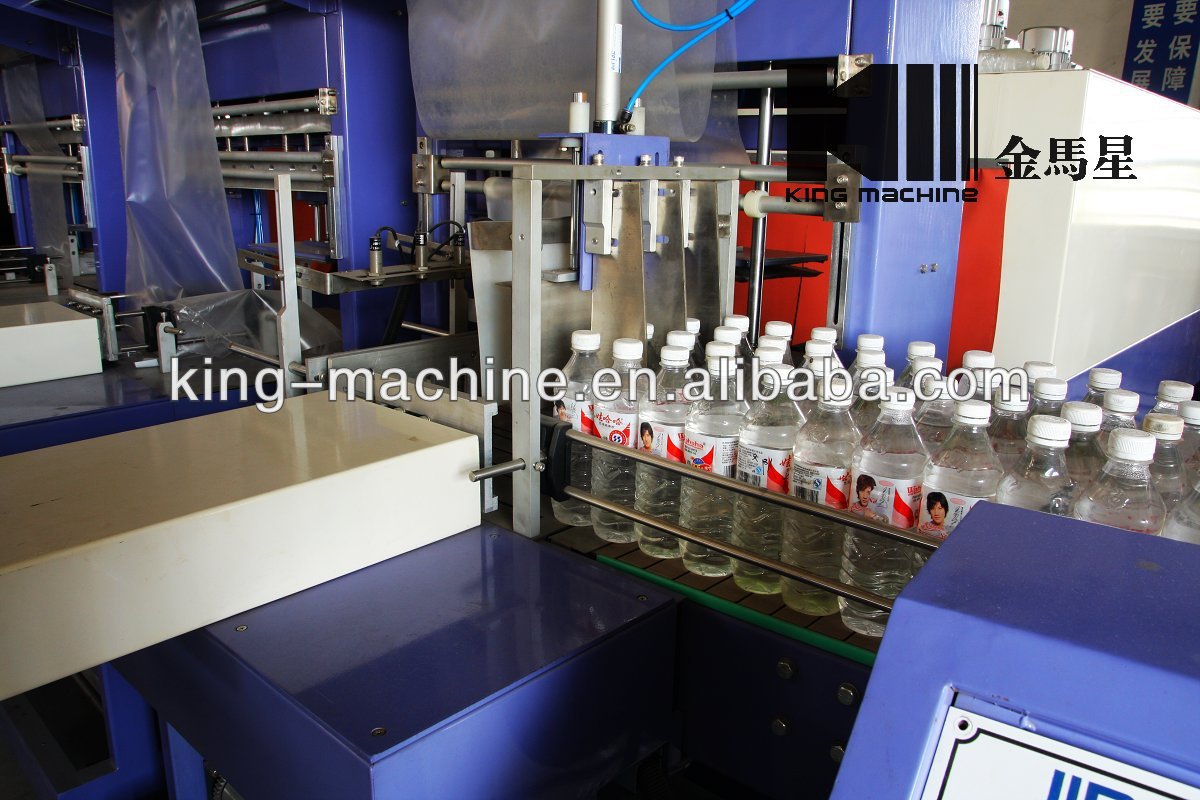

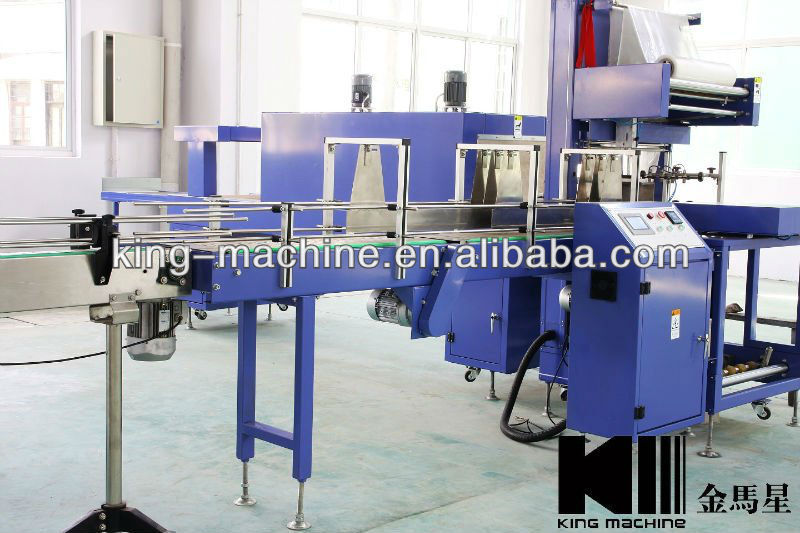

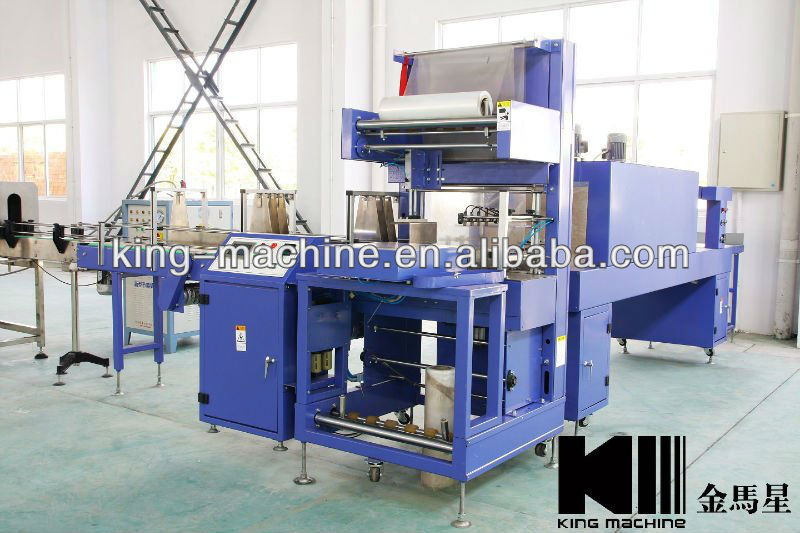

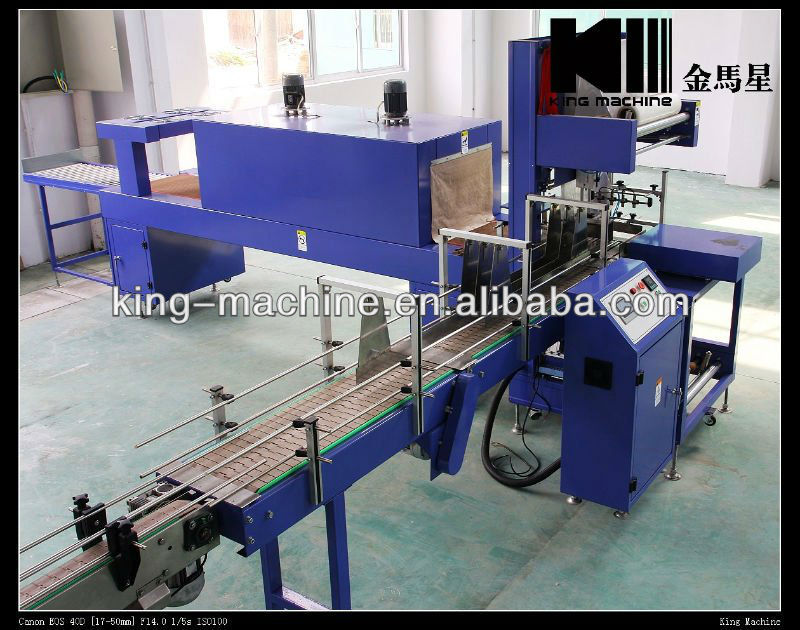

Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as poptop, mineral water , bottles. beer, drinks etc. without bottom tray , working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the germany advanced technics, and the main parts are imported from international famous companies , Capacity stable and using long time , it consists of seven actuating motor , through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine.
Equipment type: WD-150A
Outline dimension of the equipment:L5050*W3300*H2100mm
The largest dimension of the wrappage:L600*W400*H350mm
Material of shrink film:All kinds of thermal shrinkage film for example: PE,PP,PVC,POF
Material of packing:the width of PE heat shrink film (200-600mm),thickness(0.08-0.12mm)

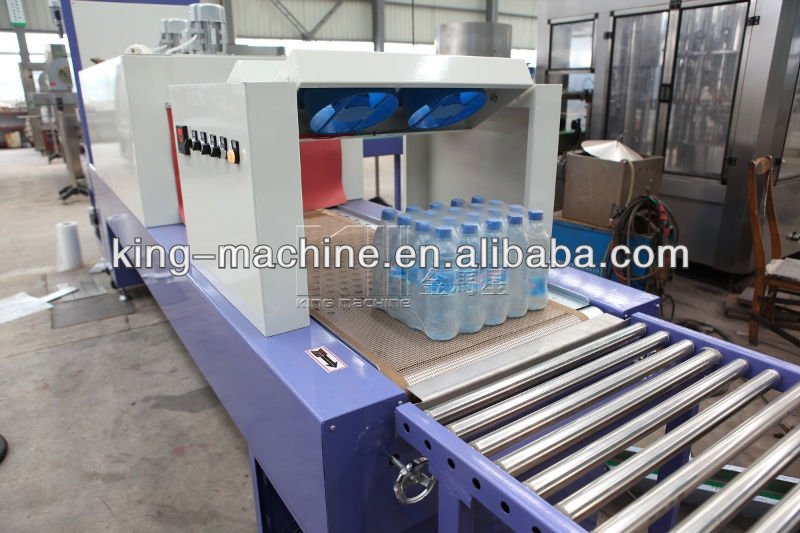

The highest temperature of the heat shrink furnace: 160-260°C.(Can adjust freewill.)
The maximum production per minute:8-15 bundles/minute
Electrical source: AC 380V/220V 50HZ
Equipment capacity: 20Kw
Actual power consumption:15Kw/hour
Feeding conveyor height: 920mm(adjustable)
Length of feeding conveyor:2600mm
Outlook dimension of equipment: 5050*3300*2100 mm
Total Weight of equipment: 1200kg
Machine required air pressure of the compressor:0.6-0.8Mpa. flux: 0.25m3/min
2,Technical requirement and request:
1. Packing terms:
(1)350/500/550/600ML large package: 4*6, 4*5
Small package: 3*4, 3*5
Four packing terms.
(2)1L/1.5L/2L/2.5L large package:3*3,3*4
Four packing terms.
2. For the pop can packing ,we advise packing with pallet,it will be steady.
4. Satisfy the speed of the liquid filling machine.
(1)350/500/550/600ML large package :4*6, 4*5, (12000-15000 bottles/hour)
3.Technical parameter of packing products:
Maximum packing dimension:600*400*350 mm( big diameter bottle could be 450*300*400mm)
The length of thermal sealing & cutting knife: 700mm
Normal bottle quantities in one package(round shape or rectangle)
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
