Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.

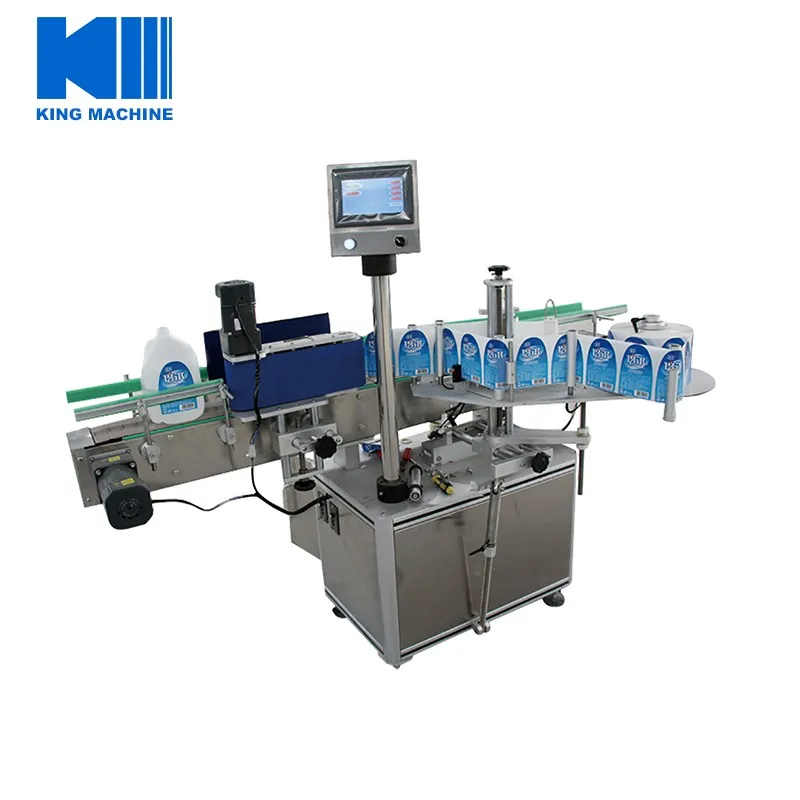

Container Label & Control Mode
Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic
Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
Manual Film shrinker Wrap Around packer Robert Packing Machine
1*2 2*3 3*4 4*6 3*5
User Ambient Conditions
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

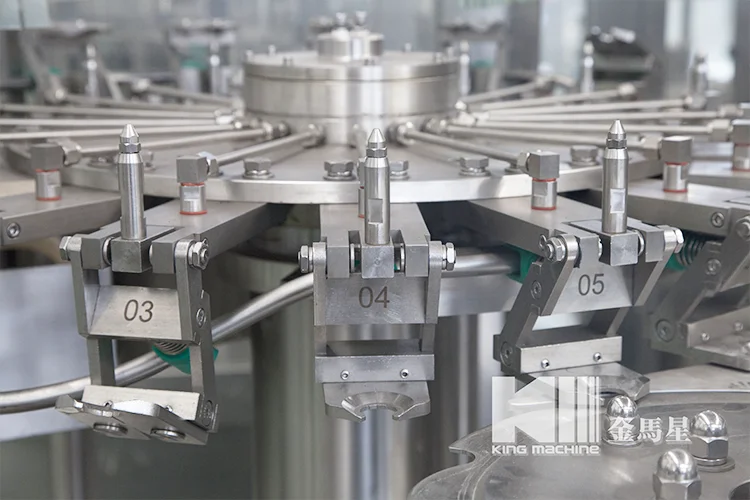

<1>Into bottle way is air conveyor direct connection with Bottle dial . <2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean . <3>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing <4> 304/316 stainless steel washing pump make the machine more durable .

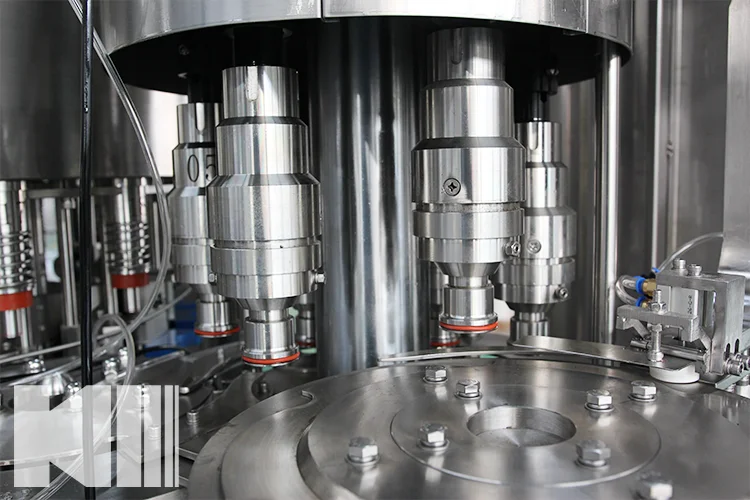

<1> 304/316 Stainless steel high precision filling nozzle <2> Filling volume adjustable in fine rank, same liquid level after filling <3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean <4> 304/316 stainless steel filling pump <5>Efficient spray nozzle rinse thoroughly and save water for flushing
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction <3> No bottle no capping <4> Automatic stop when lack of bottle <5>Capping effect is stable and reliable ,Defective rate ≤0.2% .
Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS 304 /316. Rack made by high quality carbon steel welded .
RO water treatment system.
1 Raw water tank + Raw water pump 2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter 3 Reverse Osmosis (one level) 4 UV sterilizer 5 Finished water tank + Pure water pump
1/Stainless steel high pressure film shell 2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system 3/Online type pressure auto self-protection device 4/Online type electricity indicator (with stable compensation) 5/System safe protecting and alarm system 6/System frame

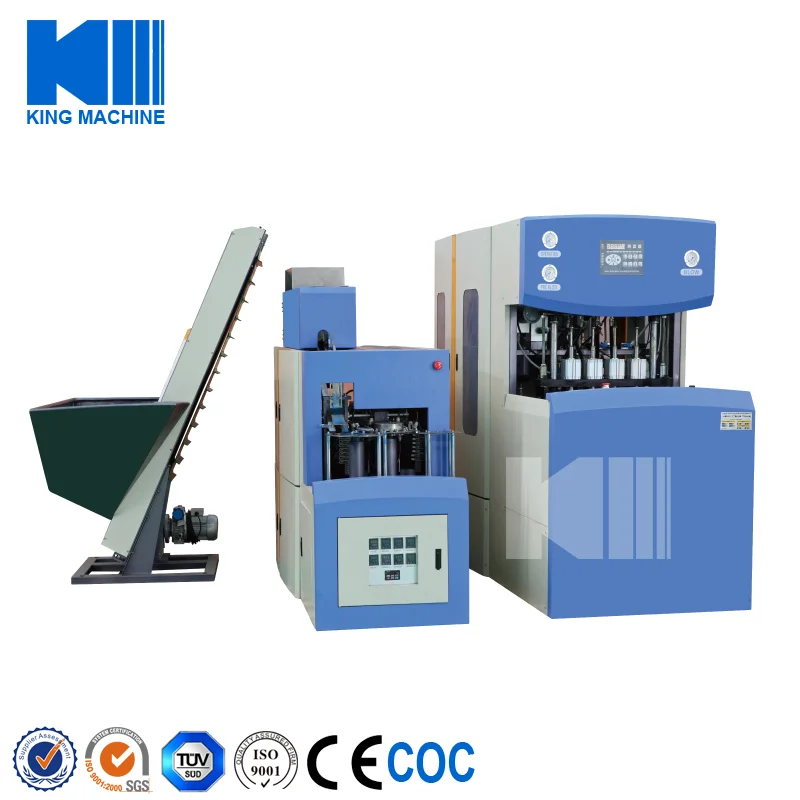

Blow molding system.
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

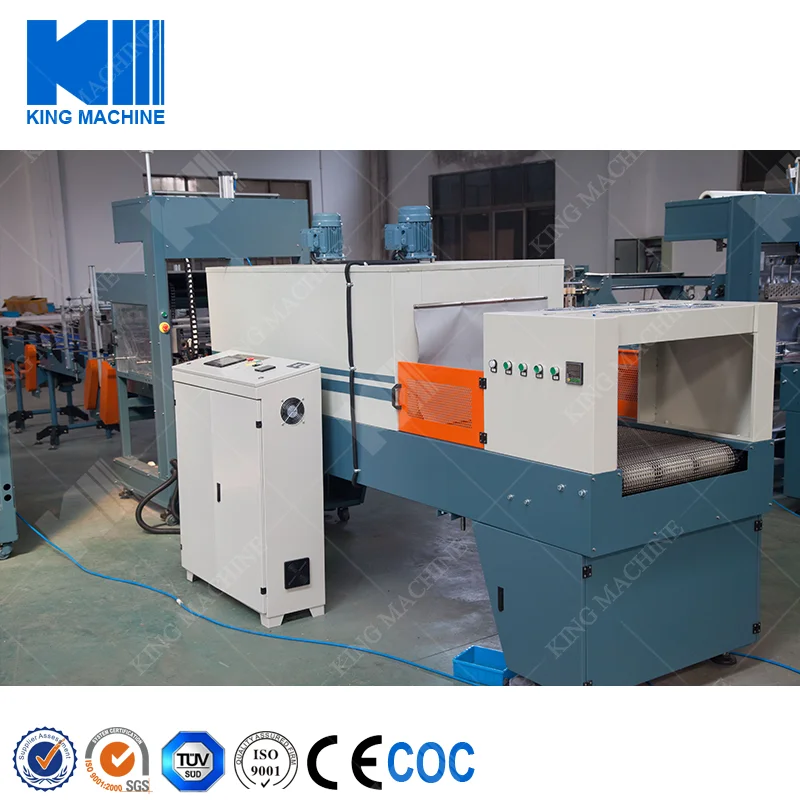

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Certificate & Patent
About King Machine
<1> Standardized workshop of total 12,000 square meters.
<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine . Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
1. Installation, debug After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
Packing & Delivery
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on. Transport : By sea. By train. By aircraft.
