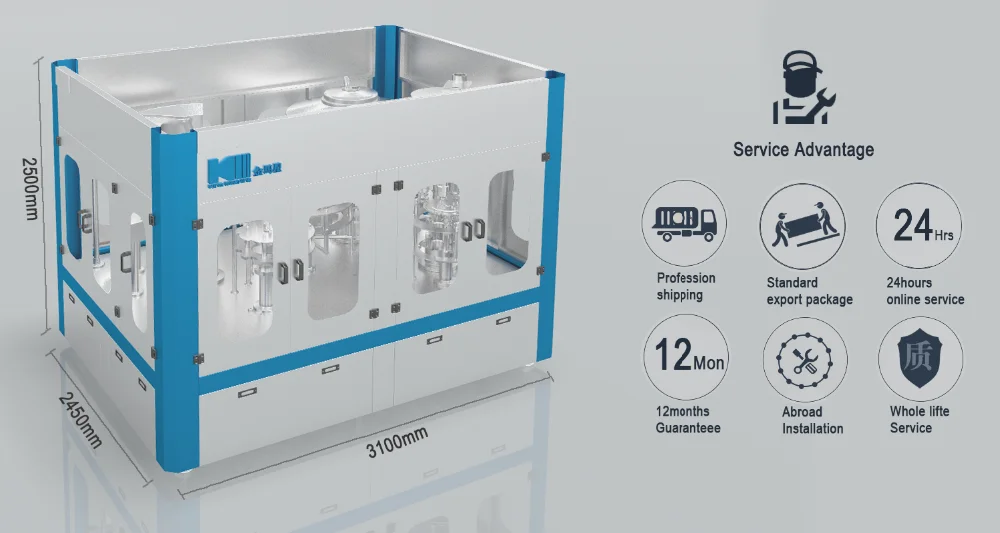

Automatic Water Filling Machine Factory / Manufacturer China

FOB Reference Price:Get Latest Price
$15,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KMY
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Barrel, Bottles, Cans, Cartons
Packaging Material:
Glass, Paper, Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Food, water /juice /carbonated beverage
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380V /450V
Power:
5.2 kw
Place of Origin:
Jiangsu, China
Brand Name:
kingmachine
Dimension(L*W*H):
2900x2200x2250mm
Weight:
4500kg
Certification:
CE,ISO,SGS
Name:
Water filling machine factory
Processing capacity:
1000-20000BPH
Processing precision:
≤±5mm
Bottle shape:
Round or square
control:
PLC (SIEMENS)
Processing:
Washing,filling,capping
Processing Types:
Normal pressure filling
Bottle size:
250ML-2L
Material:
Stainless steel
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
shanghai
Detail Description

Automatic Water Filling Machine Factory / Manufacturer China

*We supply complete solution for the water filling plant ,including Water treatment system / Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system

Project name :Automatic Water Filling Machine Factory / Manufacturer China
Model
CG8-8-3
CGF14-12-4
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Capacity(500ml bottles)
2000
3000-4000
6000-8000
8000-12000
13000-15000
16000-18000
Suitable bottle shapes
  PET circular or square
Bottle diameter(mm)
  Dia50-Dia115mm
Bottle height (mm)
160-320mm
Compressor air pressure(Mpa)
0.3-0.7Mpa
Washing meidum
Aseptic water
Rinsing pressure(Mpa)
>0.06Mpa <0.2Mpa
Application
                                                                Water filling machine factory
Total power (KW)
4.4
4.4
4.4
5.2
6.2
7.8
Overall dimensions(L*W)
2.3*1.9
2.5*1.9
2.8*2.15
3.1*2.5
3.8*2.8
4.5*3.3
             Height
2.3m
2.5m
2.5m
2.5m
2.5m
2.6m
Weight(kg)
2500kg
3200kg
4000kg
4500kg
6500kg
8000kg

Automatic Water Filling Machine Factory / Manufacturer China

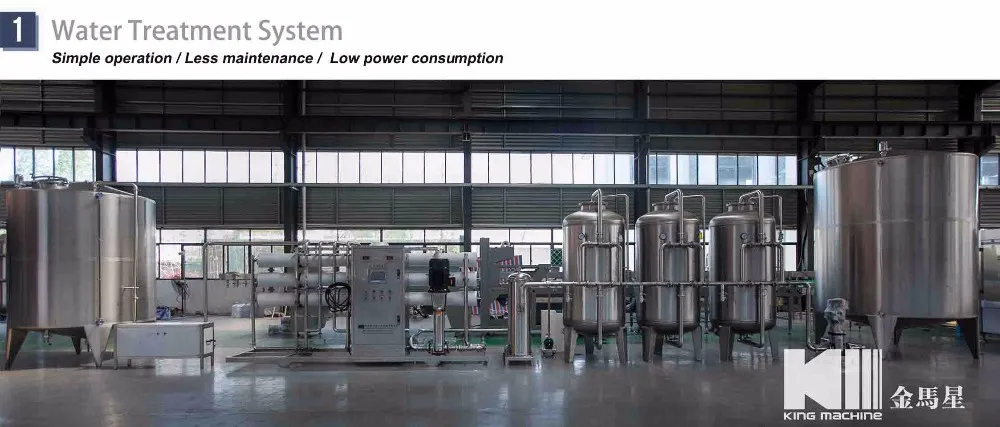

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.

Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

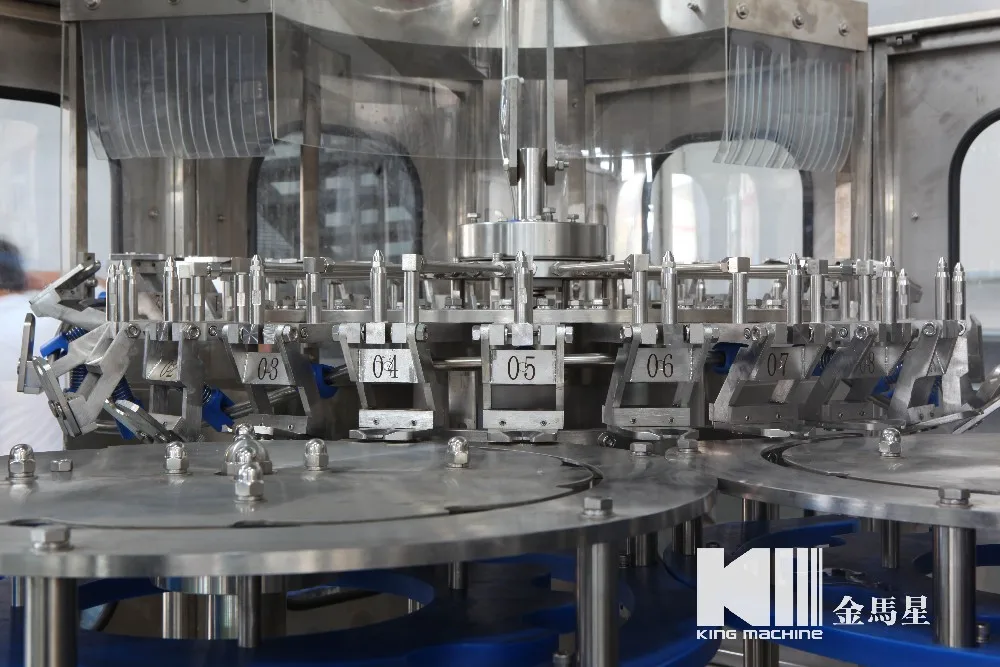

* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

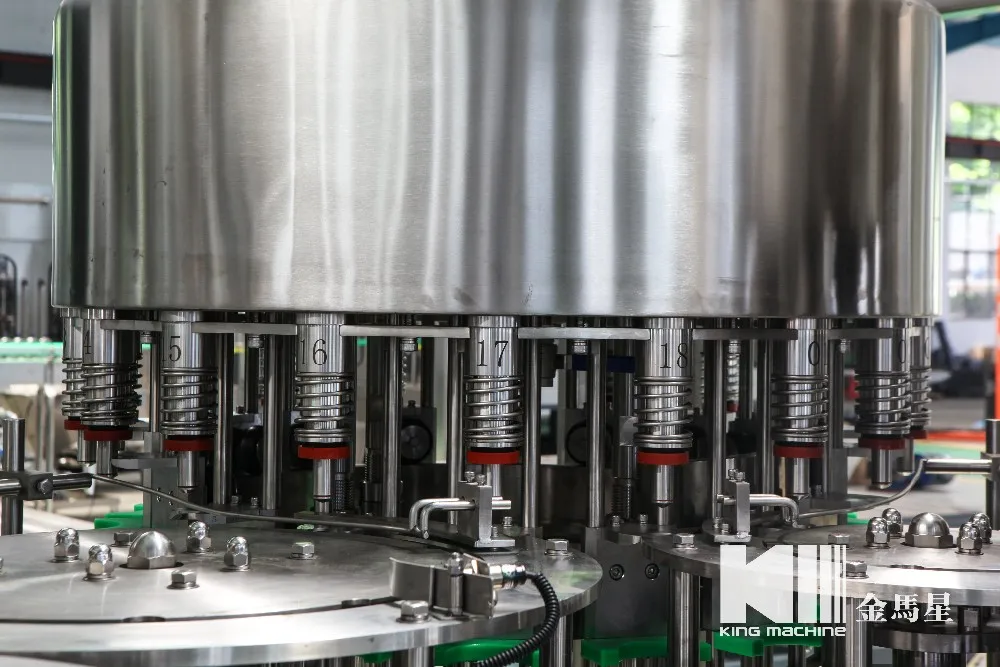

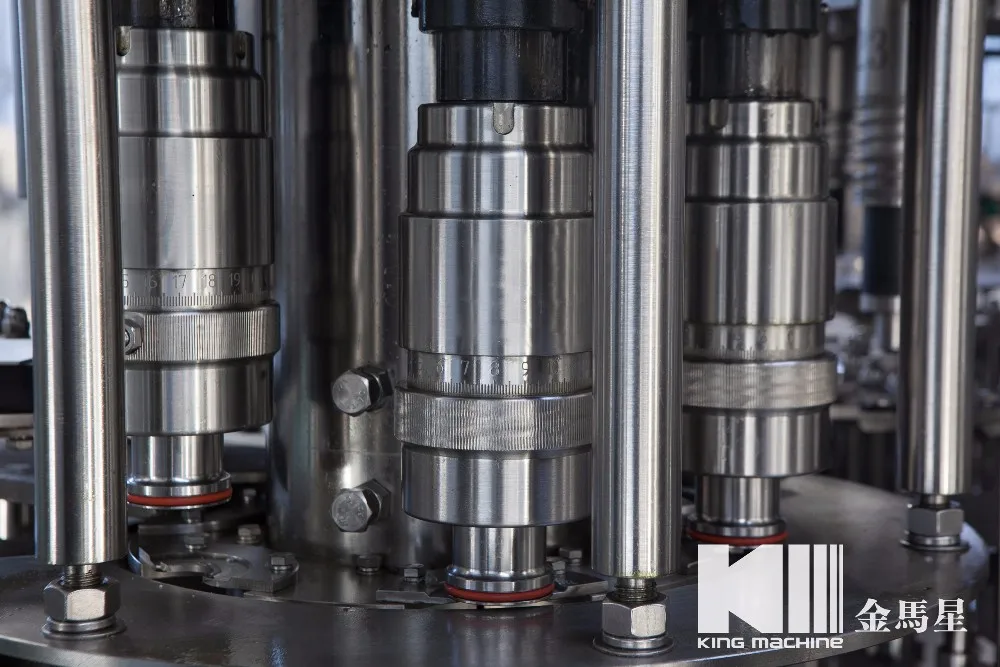

*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Name
Brand
Area
PLC
Siemens
Germany
Inverter
Siemens
Germany
Contactor
Siemens
Germany
Touch screen
Siemens
Germany
Inverter
Siemens
Germany
Motor
ABB
Swiss
Pneumatic parts
FESTO
Germany
Electrical parts
Schneider
France

As customer request and market demand ,we provide the better solution for the final product package ,

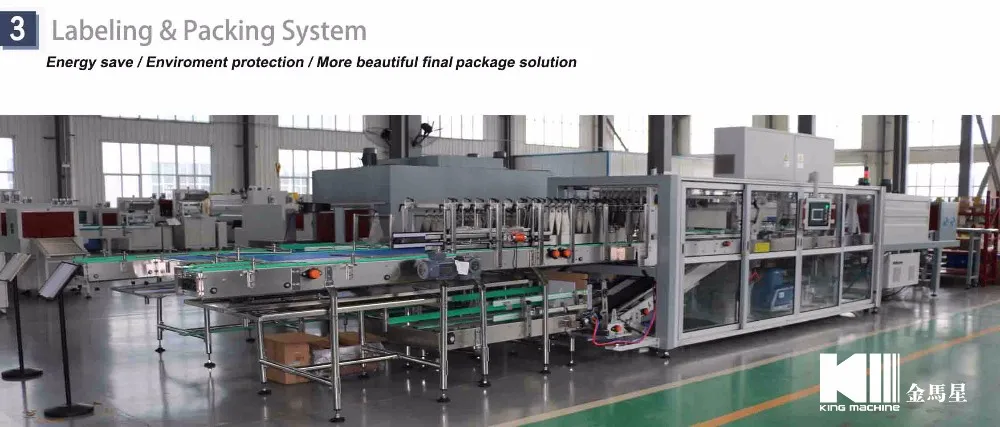

We have various kinds of options .Labeling machine have the PVC sleeve label ,BOPP hot glue label,Adhesive stick label ,Wet glue label ,and packing machine have the film shrink machine and carton box package.

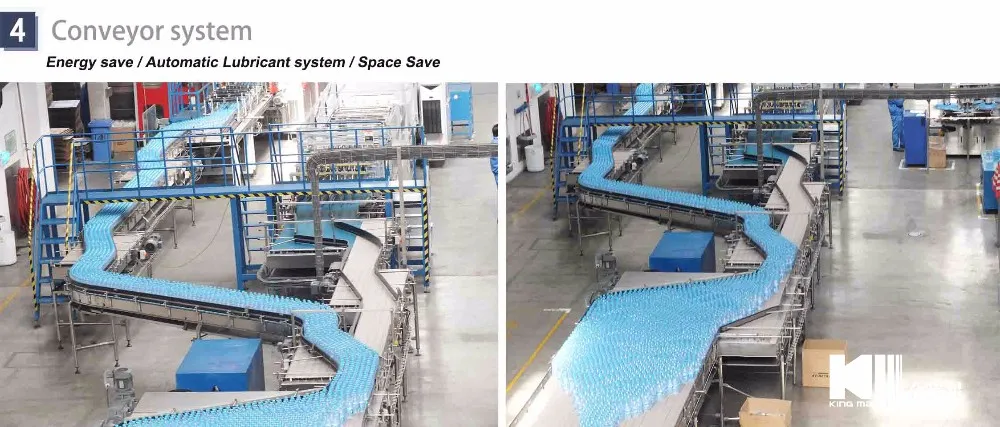

We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .

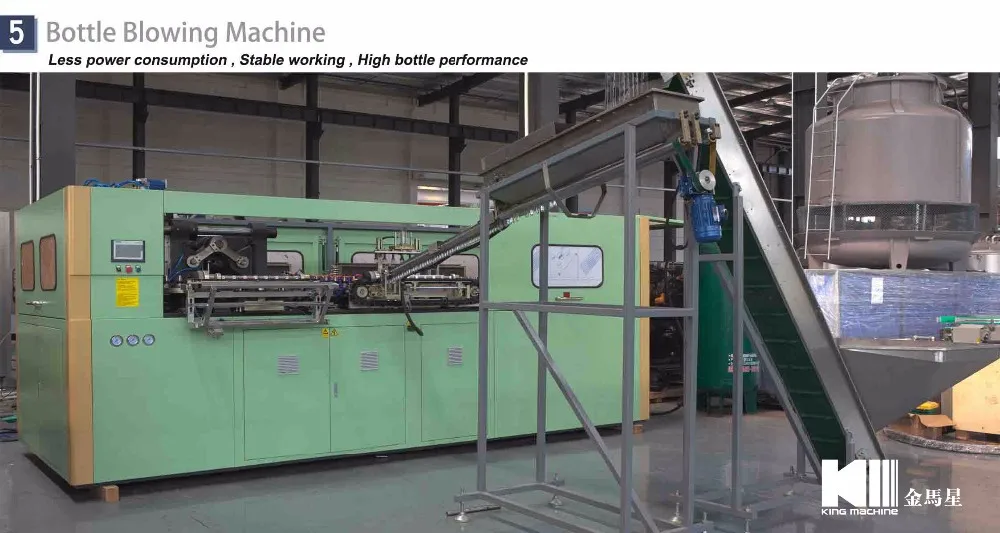

This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
More Products
Whole Line Design

Complete 3D view

Supply complete bottled mineral water / pure water Production Line as turn key project .we always keep the quality as promised .

Reasonable factory layout design

Designed based on high efficiency ,more reasonable,and energy save .with rich beverage filling line experience.
About King Machine

King Machine is ...

*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
