High Quality Beverage Co2 / Carbonated Drink Mixer
stainless steel 304
1 year, 1 year
After-sales Service Provided:
Engineers available to service machinery overseas
20 Set/Sets per Month High Quality soft drinks CO2 mixing machine/production machine
Packaging & Delivery
standard export wooden case suitable for long distance land and sea transportation.High Quality soft drinks CO2 mixing machine/production machine
25 days for Drink Mixer / CO2 Drink Mixer
High Quality soft drinks CO2 mixing machine/production machine
Beverage Co2 / Carbonated Drink Mixer (carbonated drinks mixer)is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
(1). Range of proportion on syrup and water 1:3 1:10
(2). Volume of Carbonation (CO2: H2O in volume) 2: 5
(3). Mixing precise error ≤2%
(4). Cooling water temperature in entry mouth 0-4
(5). Cooling water pressure in entry mouth 0.01-0.08Mpa
(6). Syrup temperature in entry mouth 2-8
(7). Syrup pressure in entry mouth 0.01-0.08Mpa
(8). CO2 pressure in entry mouth 0.7-0.8Mpa
(9). CO2 pure % 99.9%
(10). Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(11). Working pressure of tank 0.2-0.5Mpa
(12). Total motor power 6.3KW
2 Products Structure and Working Procedure

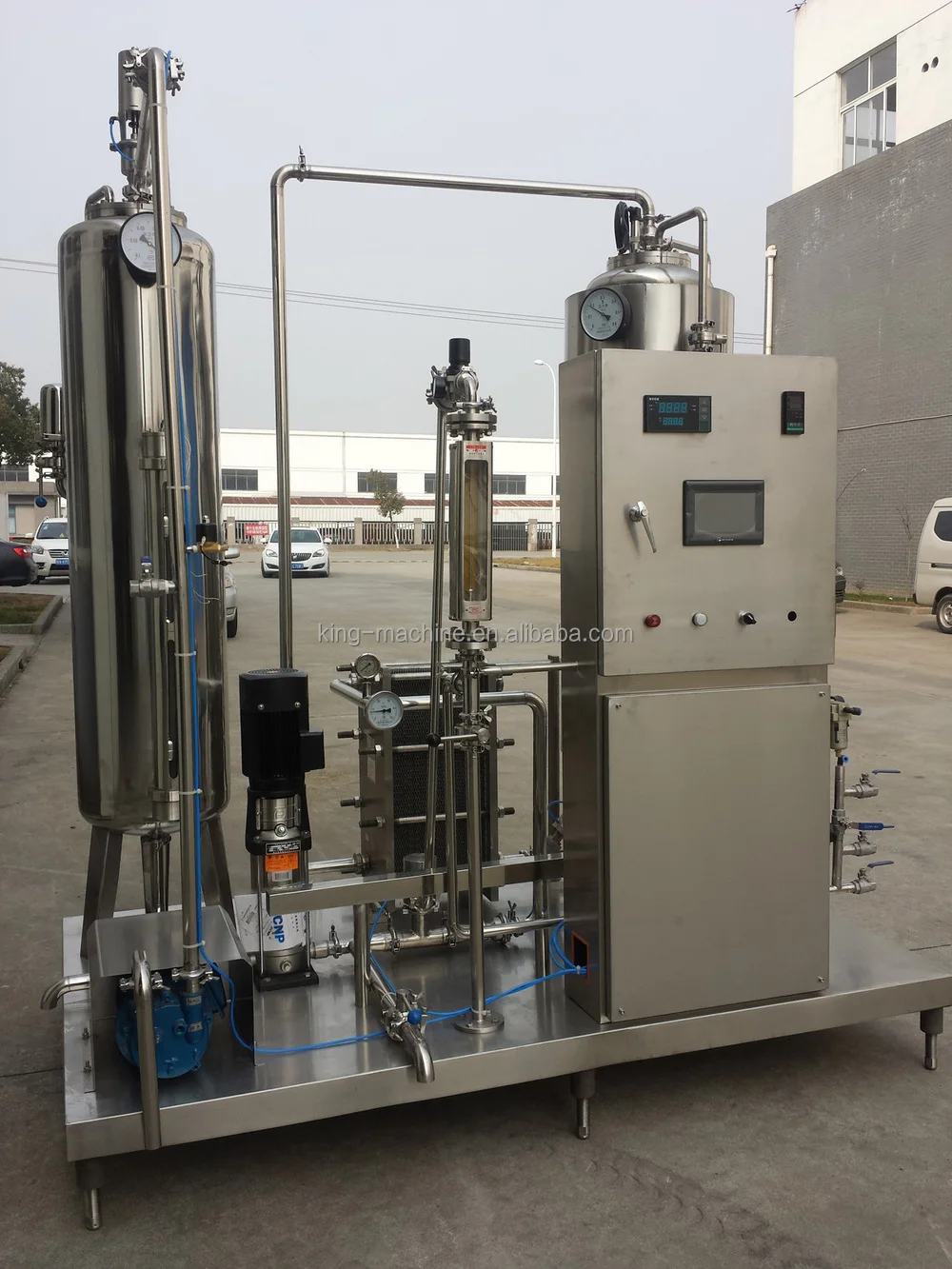

(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device→
c. CO2 air resource→filter and pressure reducing→ tank→filling machine
Packaging & Shipping
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
Our production workshop
Our workers are working
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
